Category:round hole punch

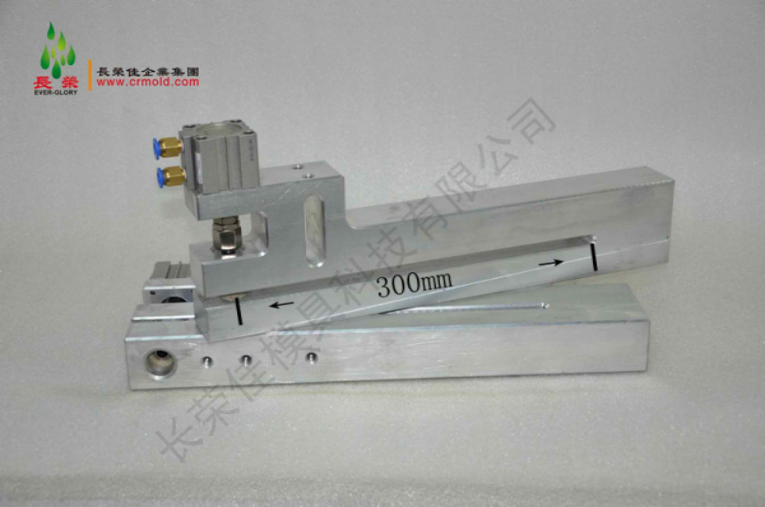

- Product Name：small round hole punch with 300mm throat depth
- Description:Productinformation: Itemname: small round hole punch with 300mm throat depth Size: 1mm to 10mm PunchdieMaterial specialsteelusedforpunchingflexiblepackingfilm. MoldMaterial importedaluminumalloywhichwithaerospacemanufacturinglevel. Typeofmo
- hotline:1392500655
-
Product information:
Characteristic:
1. Pneumatic operating punch, apply for different type of plastic bag making machine
2. Can punching for 0.02mm single-layer material of plastic bag, paper, non-woven fabrics. PE, OPP, PO, PP, PVC, PPE, PPU, OPE film, ect..
3. High quality and precision
4. Mold base is used the imported aluminum alloy which with aerospace manufacturing level. The stability and
life of the mold base are more than two to three times of the domestic ones.
5. The steel used for the punch die is made specially according to the characteristics of flexible packing film.
6. The punch die can be replace when it is worn
7. 180/min to 360/min working speed, can punching for 20,000,000 times.
8. Custom design and Logo is available
Welcome to inquiry!
| Item name: | small round hole punch with 300mm throat depth |
| Size: | 1mm to 10mm |
| Punch die Material | special steel used for punching flexible packing film. |
| Mold Material | imported aluminum alloy which with aerospace manufacturing level. |
| Type of mold base | C-Frame type |
| Throat depth | 300mm |
| Weight | 4.5kg |
| Payment term | TT or Western Union |
| MOQ | 1 set |
Characteristic:
1. Pneumatic operating punch, apply for different type of plastic bag making machine
2. Can punching for 0.02mm single-layer material of plastic bag, paper, non-woven fabrics. PE, OPP, PO, PP, PVC, PPE, PPU, OPE film, ect..
3. High quality and precision
4. Mold base is used the imported aluminum alloy which with aerospace manufacturing level. The stability and
life of the mold base are more than two to three times of the domestic ones.
5. The steel used for the punch die is made specially according to the characteristics of flexible packing film.
6. The punch die can be replace when it is worn
7. 180/min to 360/min working speed, can punching for 20,000,000 times.
8. Custom design and Logo is available
Welcome to inquiry!
